High-speed motif production with six feeder positions, multi-size flexibility, and a simplified touchscreen workflow.

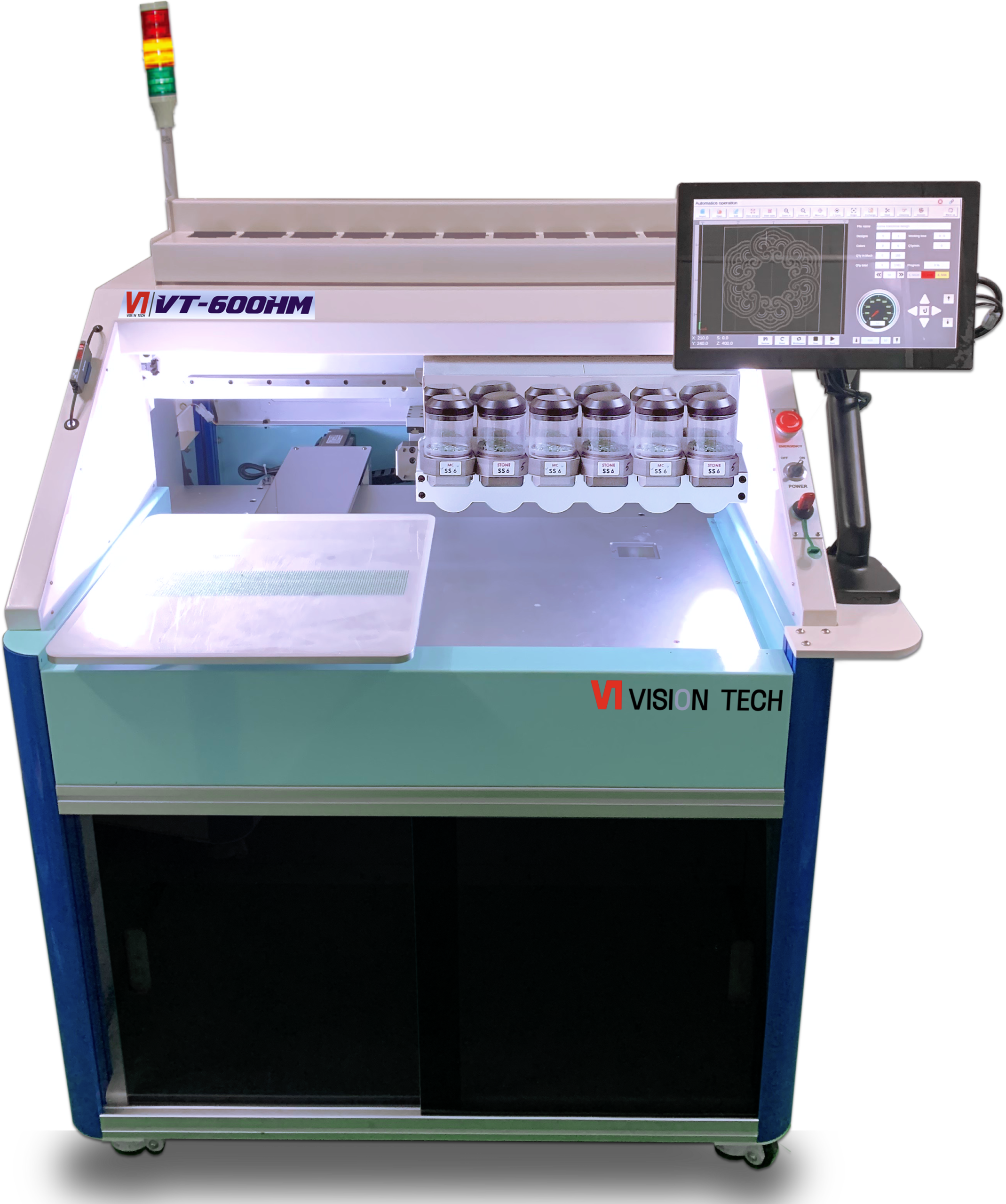

⎯ AUTOMATIC RHINESTONE MOTIF SETTING MACHINE
Automation, refined.
VT-600HM
PERFORMANCE
Built for fast, flexible production.
Four key capabilities designed to support efficient, repeatable rhinestone motif production.
600+
Stones per minute
6
Feeder positions
7
Supported stone sizes
400 × 400
Working area · mm
PLACEMENT SPEED
Speed you can build a workflow around.
The VT-600HM automatically places hotfix materials onto transfer paper according to the selected design, helping operators move from setup to repeatable production with fewer manual steps.
600+
stones per minute

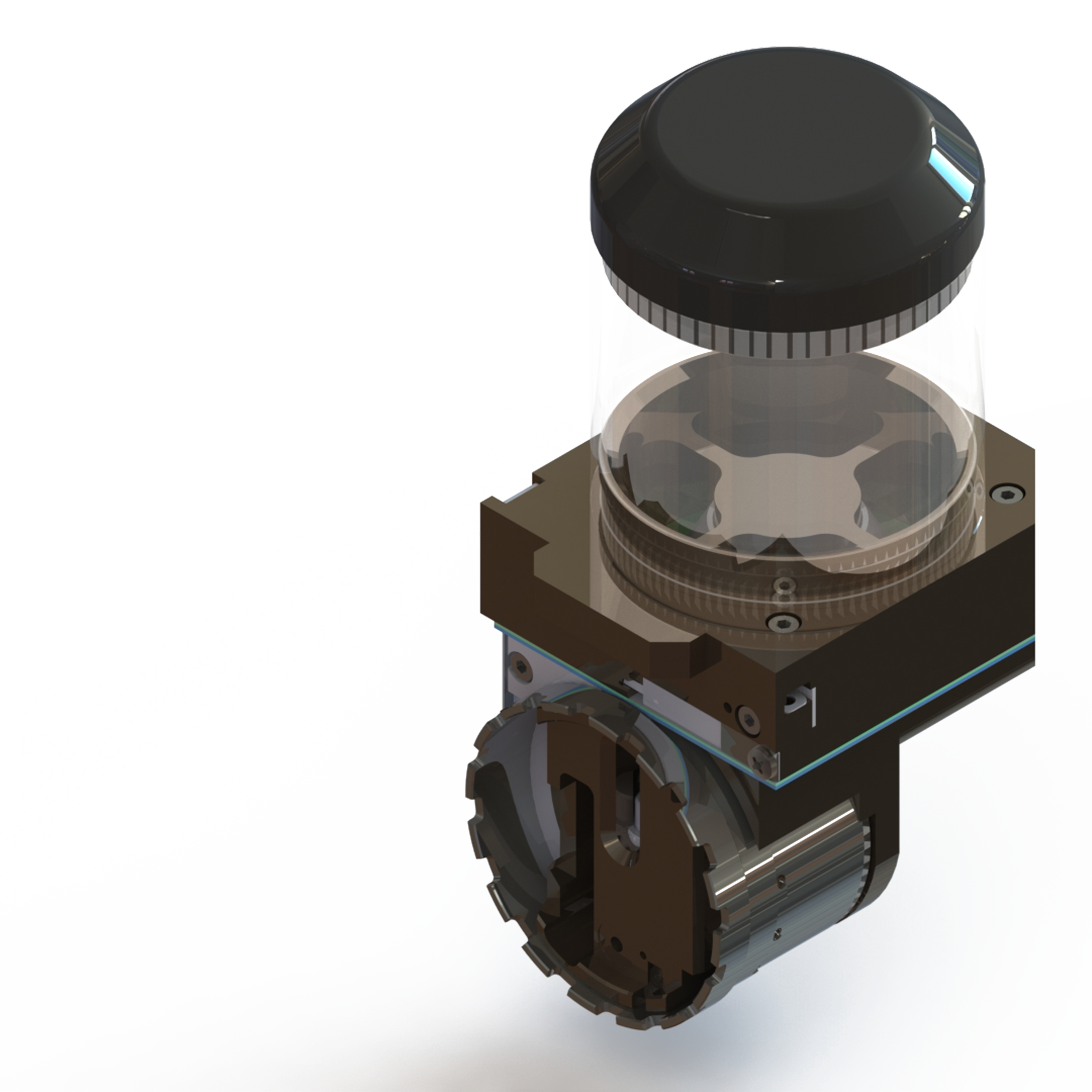

Quick-change feeder system
Change faster.
Produce more.
Each RSF feeder is configured for a specific material type and size. Change production specifications by replacing the feeder instead of rebuilding the complete setup.
01
Simple changeover
Dedicated feeder configurations support a clear, repeatable material-change process.
02
Stable feed structure
A purpose-built feed path is designed for consistent handling of compatible materials.
03
Accessible maintenance
The removable structure makes routine cleaning and inspection easier.

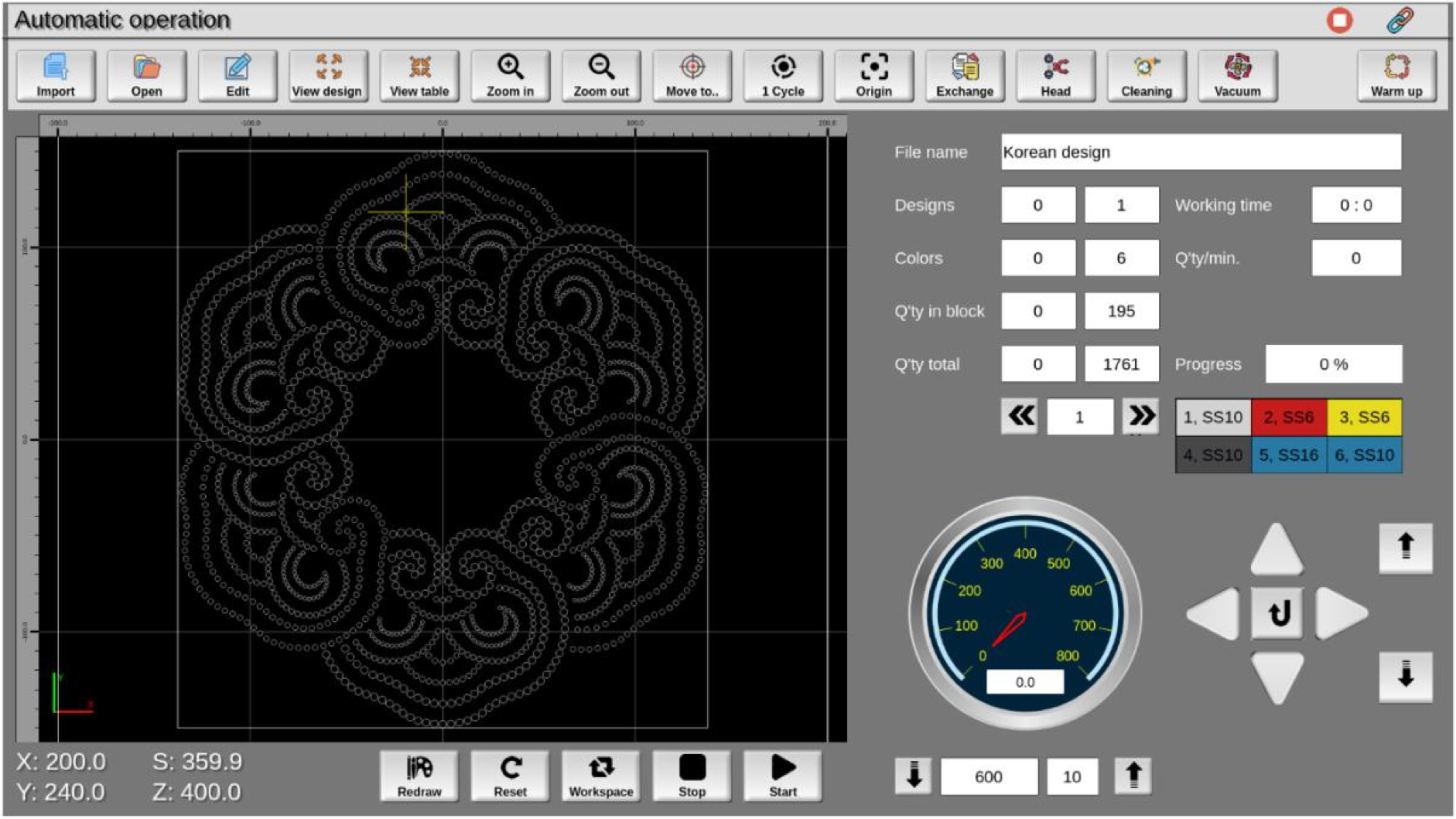

13.3-inch touchscreen
Everything important.
Visible at a glance.
A large interface brings design preview, material configuration, production status, and machine control into one operating view.
01
Load or select a design
02
Confirm feeders and materials
03
Start automatic production

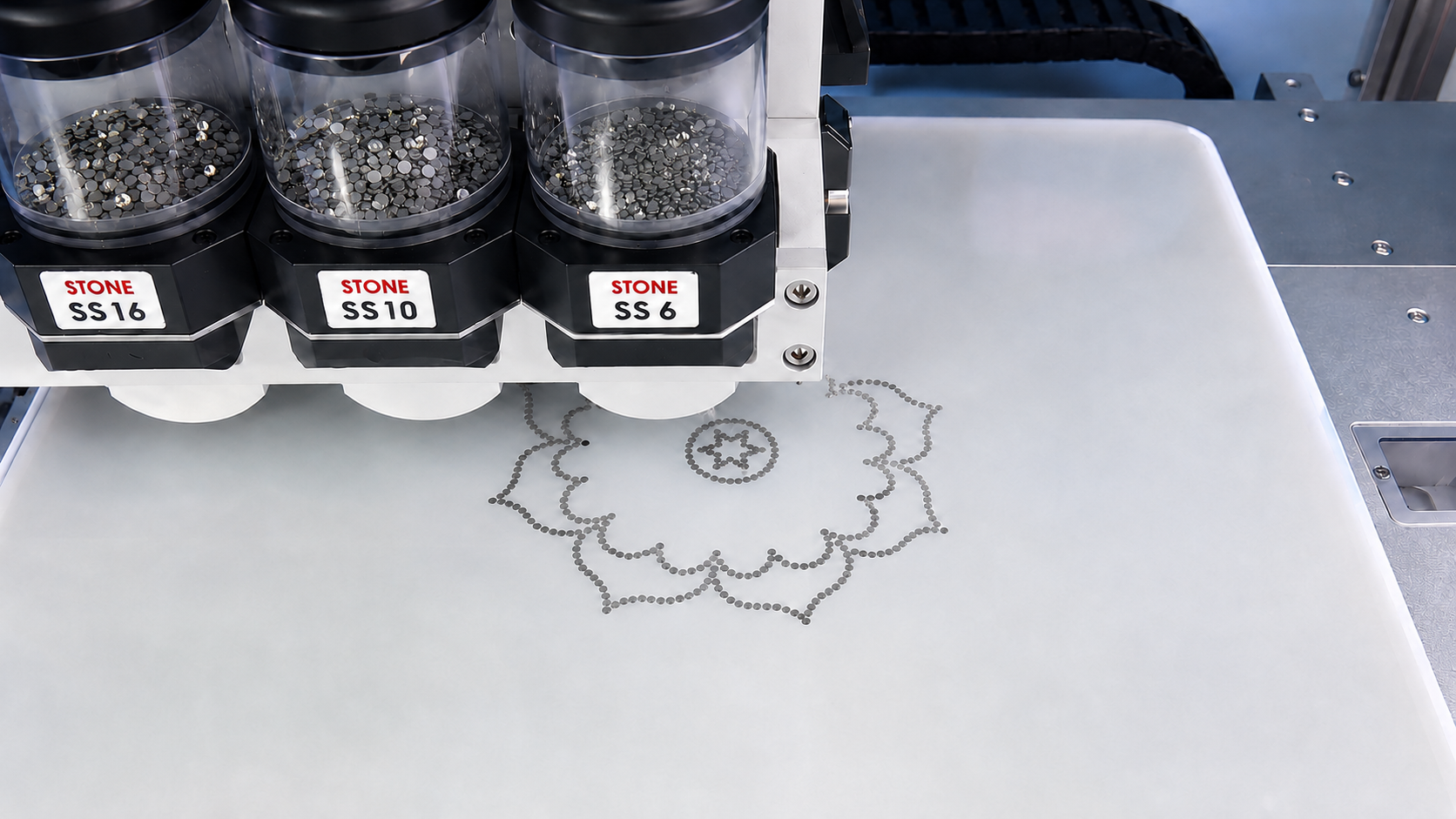

Machine in action
See the VT-600HM at work.
Watch the VT-600HM place hotfix materials onto transfer paper with speed, accuracy, and a repeatable production workflow.

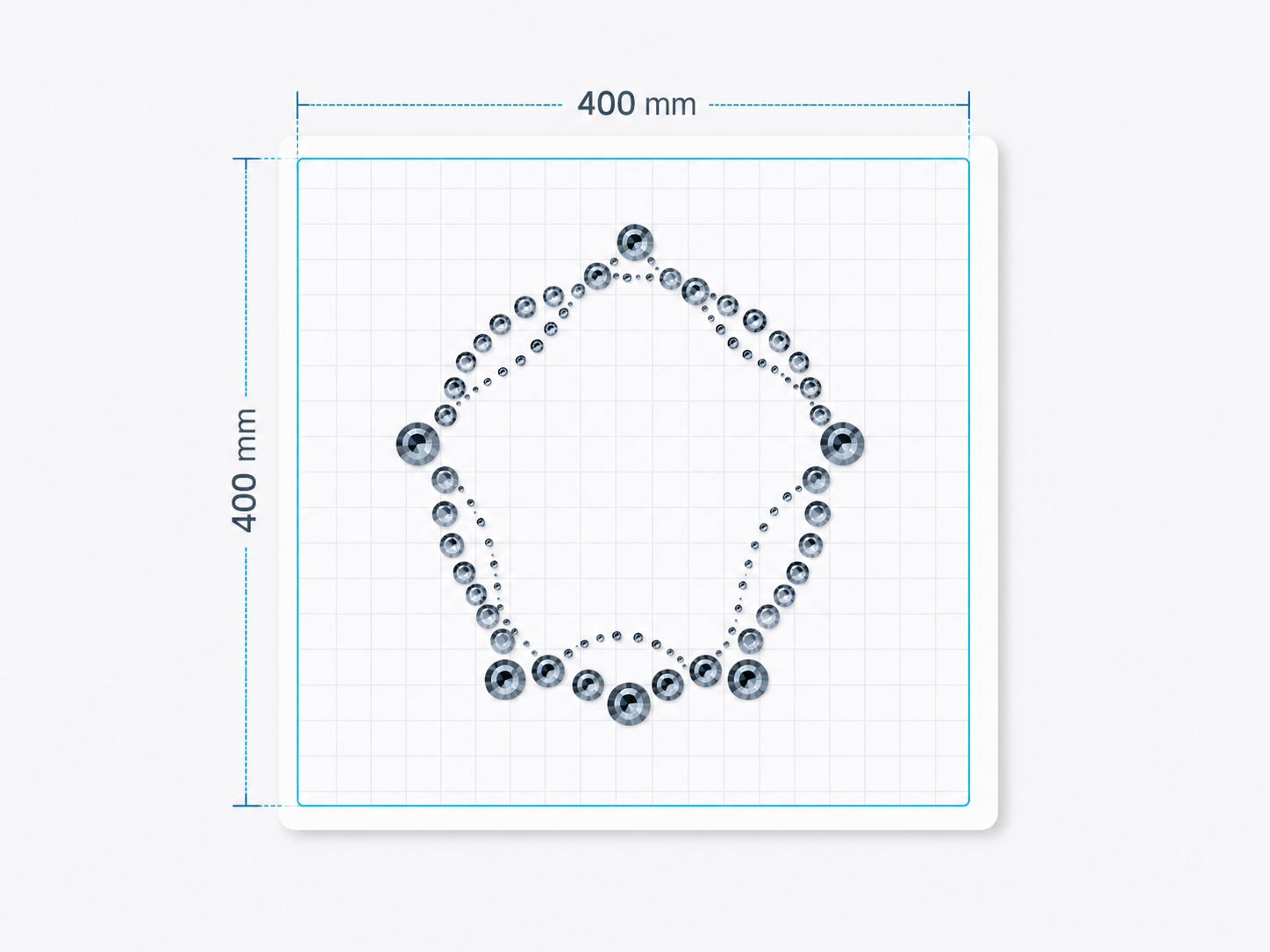

Materials & working area
More room for creative production.
Combine multiple colors and stone sizes within a standard 400 × 400 mm work area for apparel, accessories, transfers, and decorative applications.
RHINESTONE
SS4 · SS6 · SS8 · SS10 · SS12 · SS16 · SS20
RHINESTUD
2 mm – 5 mm
Applications
Detail that turns into value.
Show buyers not only the machine, but also what it can create. Pair each result image with material, size, stone count, and cycle-time data.
Technical specifications
Clear facts.
Easy decisions.
Keep technical information concise on the main page, with detailed manuals and configuration sheets available as downloads.
Feeder positions
6
Placement speed
Over 600 stones/min
Supported stone sizes
Up to 7 sizes
Working area
400 × 400 mm / 15.7 × 15.7 in
Display
13.3-inch touchscreen
Power supply
Single-phase AC 220 V, 50/60 Hz
Machine dimensions
1,100 × 890 × 1,150 mm
Machine weight
Approx. 230 kg / 507 lb
Air supply
External air compressor not required
Installation & support
Confidence after purchase matters, too.
01 · SITE
Installation guidance
Power, space, placement, and startup requirements before delivery.
02 · PEOPLE
Operator training
Operation, feeder exchange, material setup, and daily care guidance.
03 · SERVICE
Technical support
Remote diagnostics and practical assistance for operation and maintenance.
04 · SUPPLY
Parts & materials
Compatible feeder, replacement part, and hotfix material information.
Start a conversation
Tell us what you want to produce.
Share your materials, stone sizes, target output, and destination country. Vision Tech can recommend the appropriate machine and feeder configuration.
