Automatic
Bead String
Machine

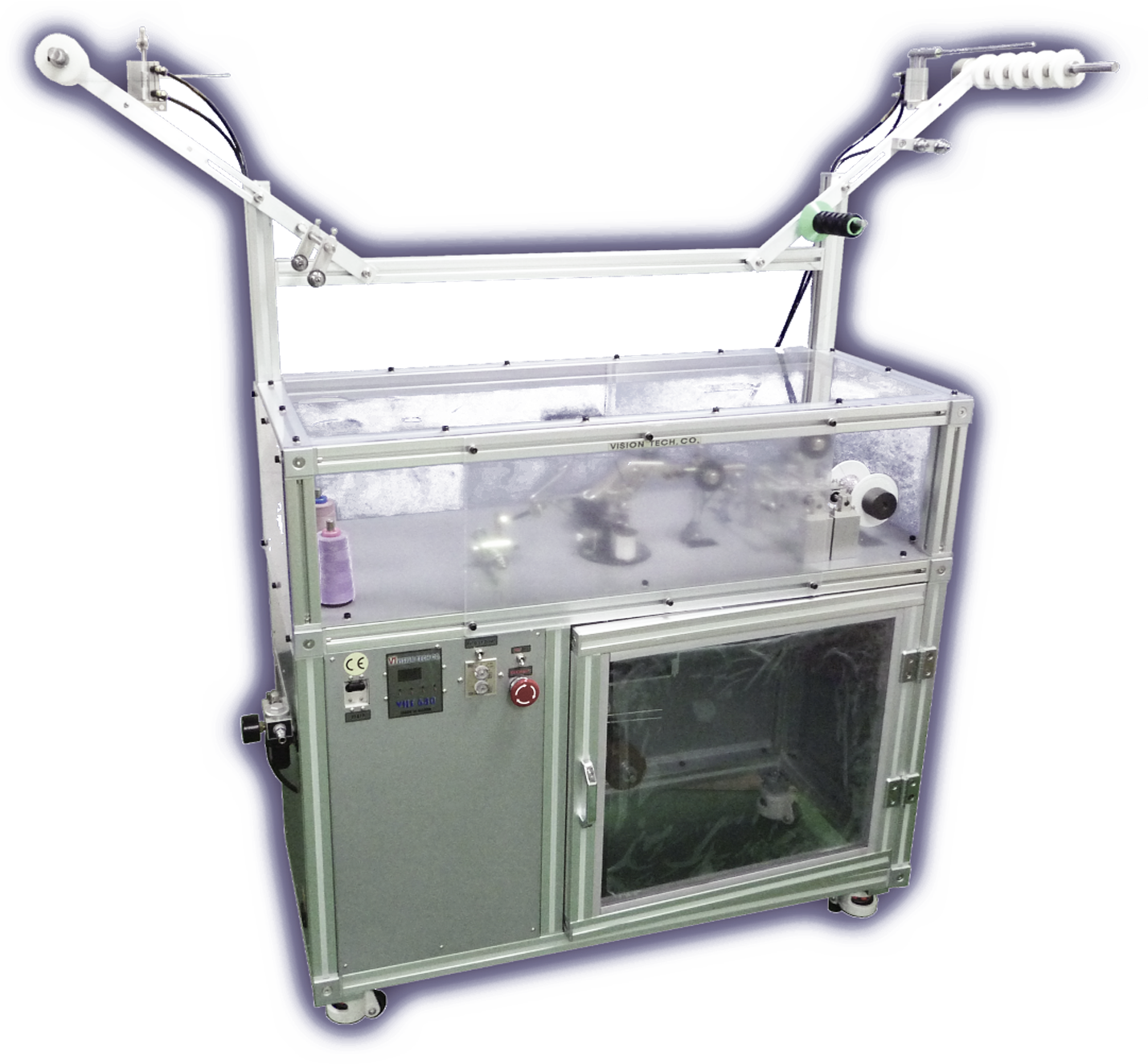

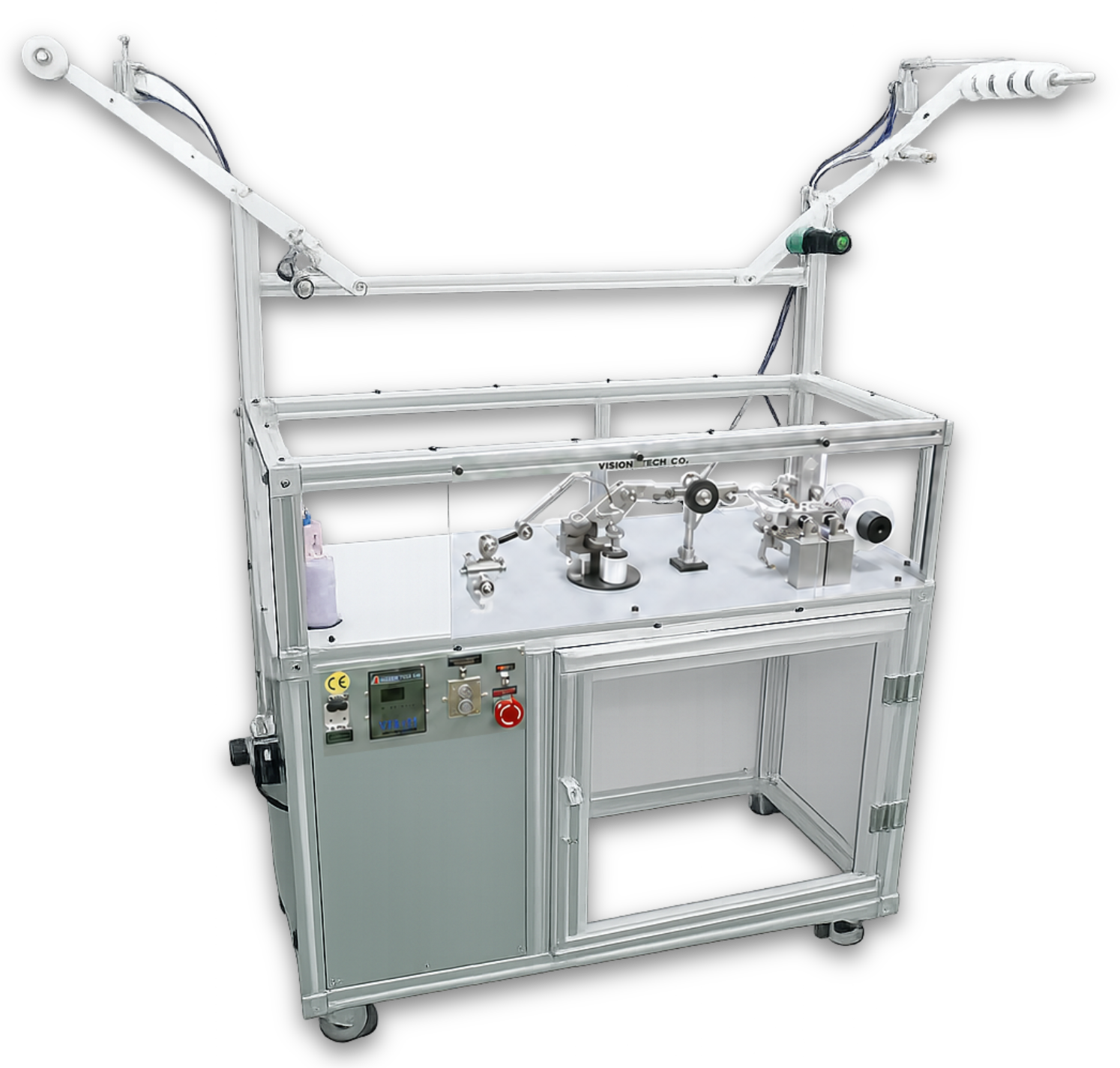

VHS 680

The first in the world launched
Technology of the original

Introduces the new technology of Vision Tech which introduced Korean automatic bead string machine to the world for the first time.
The VHS-680 can make with various pattern and type by using thread beads.
Create your own special products with different kinds and sizes of materials.
Our other machine VHS-680s can make thread beads by using loose bead.

1800rpm

The VHS-680 produces string beads at speeds up to 1800 rpm.

High productivity

1000meter to 3000 meter can be stringed per day
(8hour working basis)according to the distance of each bead.

In addition, production speed can be adjusted efficiently.

string-bead-product

A wide variety of materials

VHS-680 can be used with beads up to 5mm length and 5mm diameter of 2Cut(Hexagon)Bead, Round Rocailles, pearl.
You can use various sizes of beads by simply replacing the roller.

Grouping of bead

Grouping of bead according to the quantity can be made
on the control panel.

You can customize it according to the design you want.

Adjust the bead interval

Adjustment of bead distance Variable from 5mm with 5mm interval.
Adjustment of bead distance can be made on thecontrol panel.

Intuitive operation system

It provides user friendly interface with 7inch touch screen.

Differentiation

Among similar products, your product will shine even more. You can make differentiated products from others.You can make easily and quickly.

No air compressor required

Use only minimal air to work as a vacuum generator built-in machine.

Specifications

Power
1PH, 110V/220V, 50/60HZ
Dimension
1200 x 580 x 1250(mm)
