High-speed motif production with a single quick-change feeder, a 600 × 450 mm working area, and a simplified touchscreen workflow.

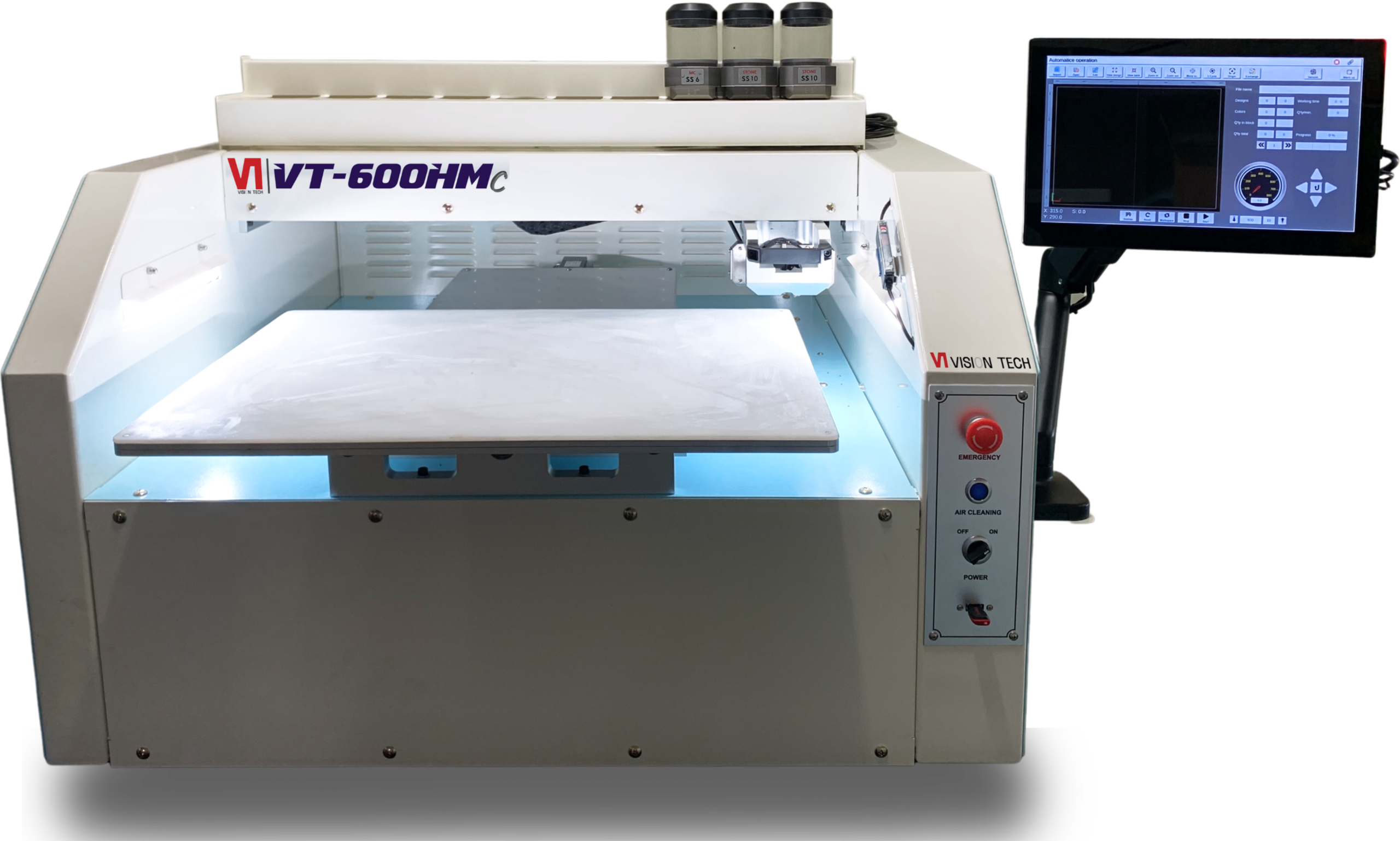

⎯ AUTOMATIC RHINESTONE MOTIF SETTING MACHINE
Production, expanded.
VT-600HMc
PERFORMANCE
Built for fast, flexible production.
Four core capabilities combine high-speed placement, quick feeder exchange, multi-size flexibility, and a 600 × 450 mm working area for efficient, repeatable motif production.
600+
Stones per minute
1
Feeder positions
7
Supported stone sizes
600 × 450
Working area · mm
PLACEMENT SPEED
Speed you can build a workflow around.
The VT-600HMc automatically places hotfix materials onto transfer paper according to the selected design, helping operators move from setup to repeatable production with fewer manual steps.
600+
stones per minute
SINGLE-FEEDER RSF SYSTEM
One feeder.
Simple changeovers.
The detachable RSF feeder lets operators change material color or size by replacing the dedicated feeder, without additional machine setup.
01
Quick feeder exchange
Replace the dedicated feeder in seconds when changing material color or size.
02
No additional setup
The feeder system supports color and size changes without reconfiguring the machine.
03
Easier maintenance
The removable RSF structure makes routine cleaning, inspection, and maintenance more accessible.

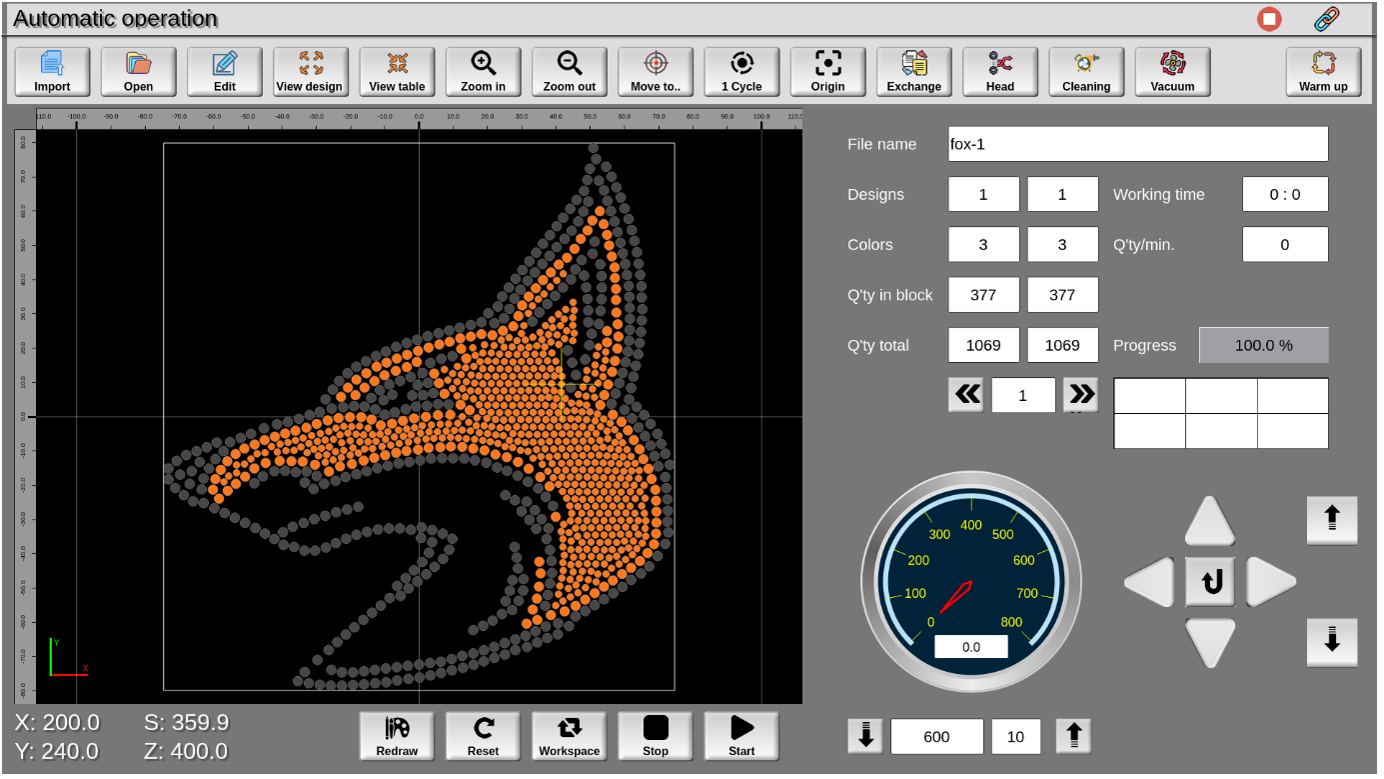

13.3-inch touchscreen
Everything important.
Visible at a glance.
The 13.3-inch touchscreen brings design preview, material configuration, production status, and machine control into one operating view.
01
Load or select a design
02
Confirm feeders and materials
03
Start automatic production

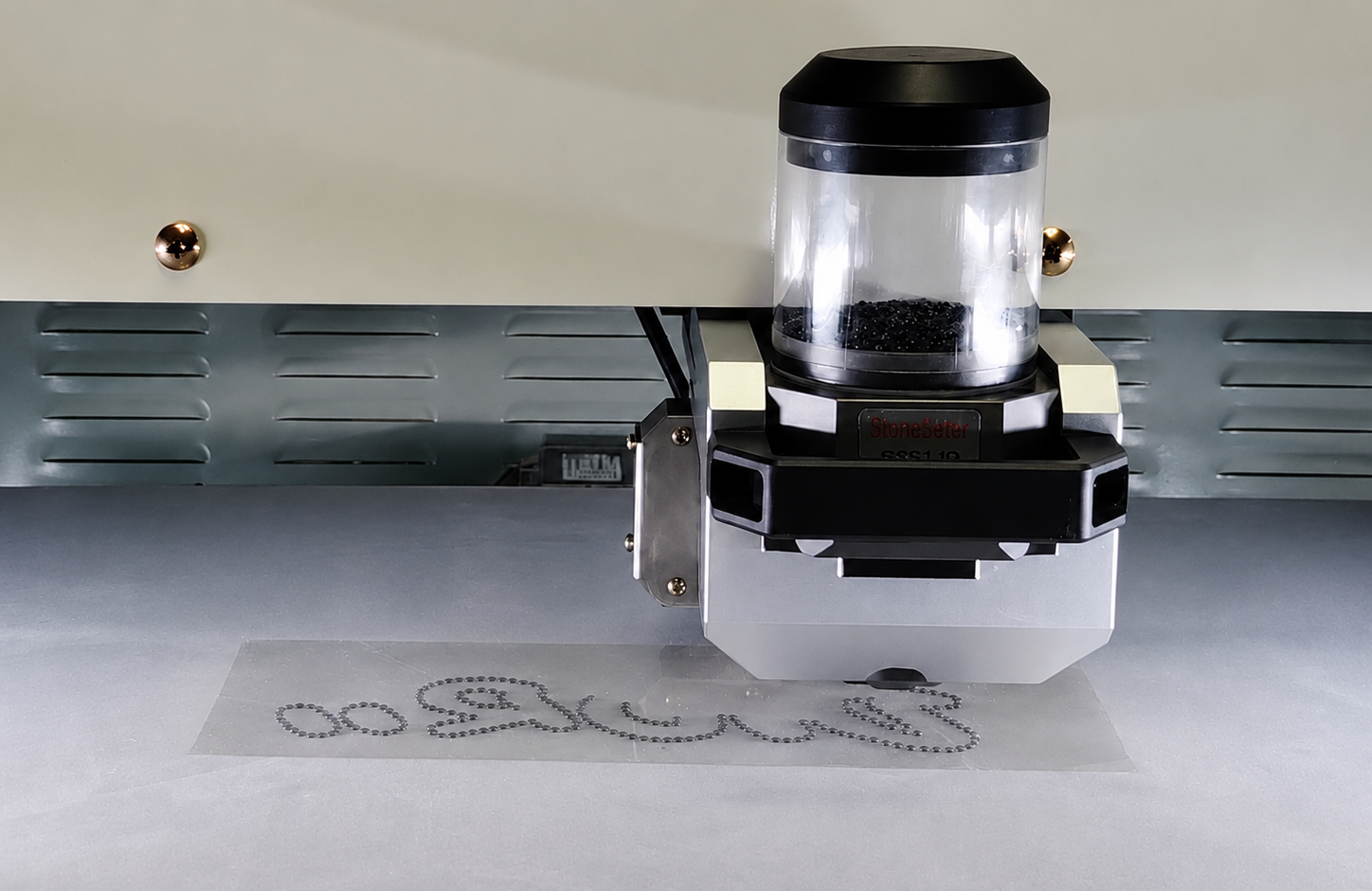

Machine in action
See the VT-600HMc at work.
Watch the VT-600HMc place hotfix materials onto transfer paper with speed, accuracy, and a repeatable production workflow.

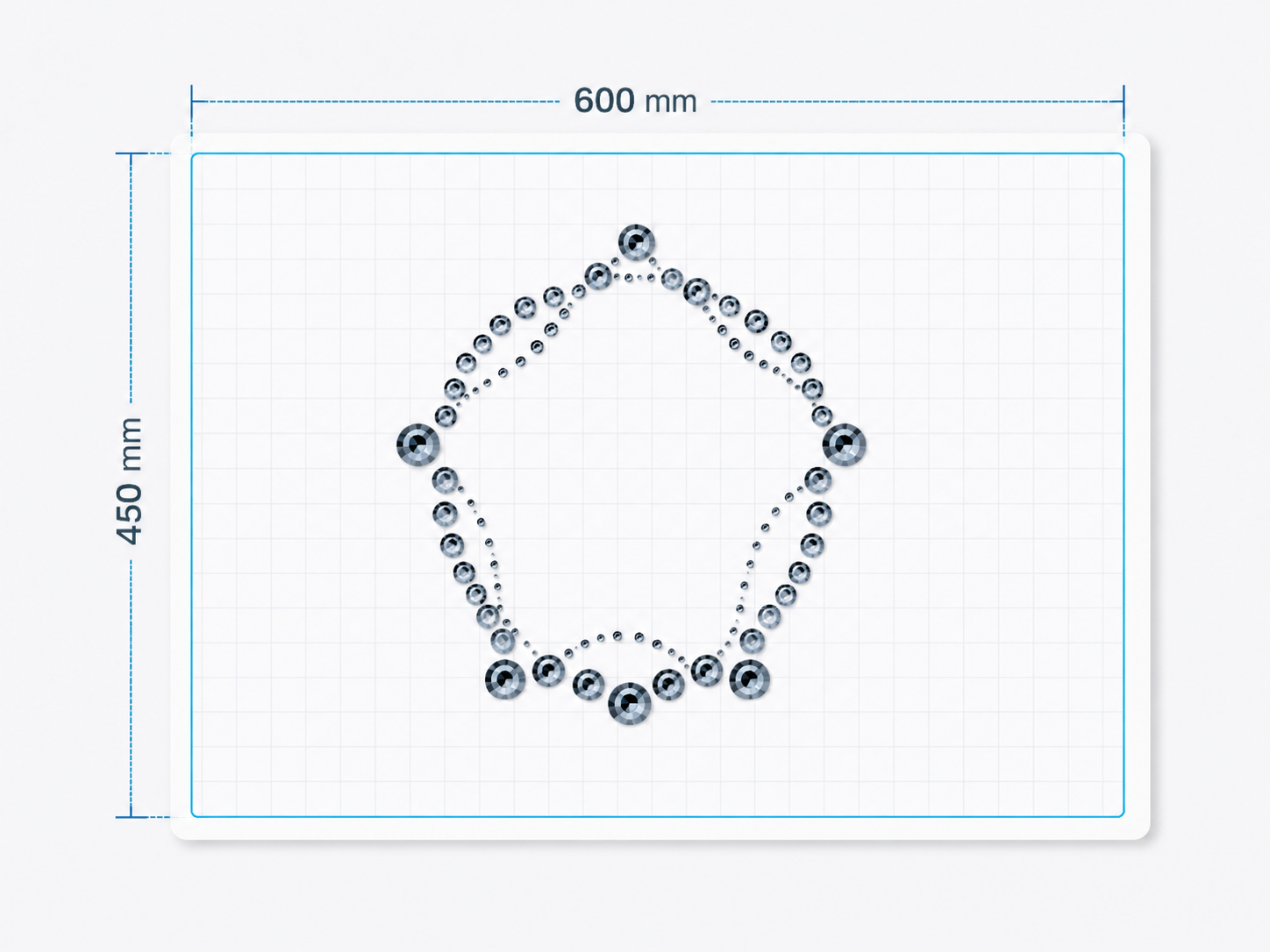

Materials & working area
More space for large-format production.
The 600 × 450 mm work table supports larger motifs and repeated layouts on large transfer sheets, while quick feeder exchange enables production with different colors and material sizes.
RHINESTONE
SS4 · SS6 · SS8 · SS10 · SS12 · SS16 · SS20
RHINESTUD
2 mm – 5 mm
Applications
Detail that turns into value.
Explore representative rhinestone motifs that show the range of designs supported by the VT-600HMc, from multi-color graphics and fine details to dense ornamental patterns and large-format layouts.
Technical specifications
Clear facts.
Easy decisions.
Keep technical information concise on the main page, with detailed manuals and configuration sheets available as downloads.
Feeder positions
1
Placement speed
Over 600 stones/min
Supported stone sizes
Up to 7 sizes
Working area
600 × 450 mm / 24 × 18 in
Display
13.3-inch touchscreen
Power supply
Single-phase AC 220 V, 50/60 Hz
Machine dimensions
1,110 × 910 × 600 mm / 44 × 36 × 24 in
Machine weight
130 kg / 286 lb
Air supply
External air compressor not required
Installation & support
Confidence after purchase matters, too.
01 · SITE
Installation guidance
Power, space, placement, and startup requirements before delivery.
02 · PEOPLE
Operator training
Operation, feeder exchange, material setup, and daily care guidance.
03 · SERVICE
Technical support
Remote diagnostics and practical assistance for operation and maintenance.
04 · SUPPLY
Parts & materials
Compatible feeder, replacement part, and hotfix material information.
Start a conversation
Tell us what you want to produce.
Share your materials, stone sizes, target output, and destination country. Vision Tech can recommend the appropriate machine and feeder configuration.
